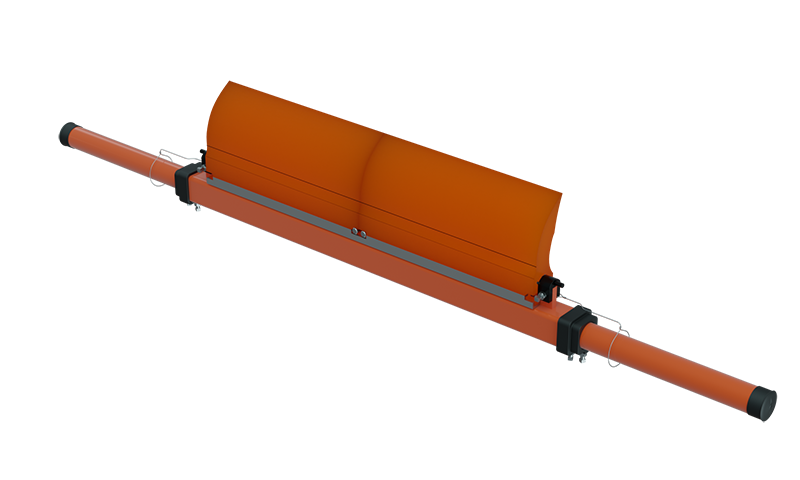

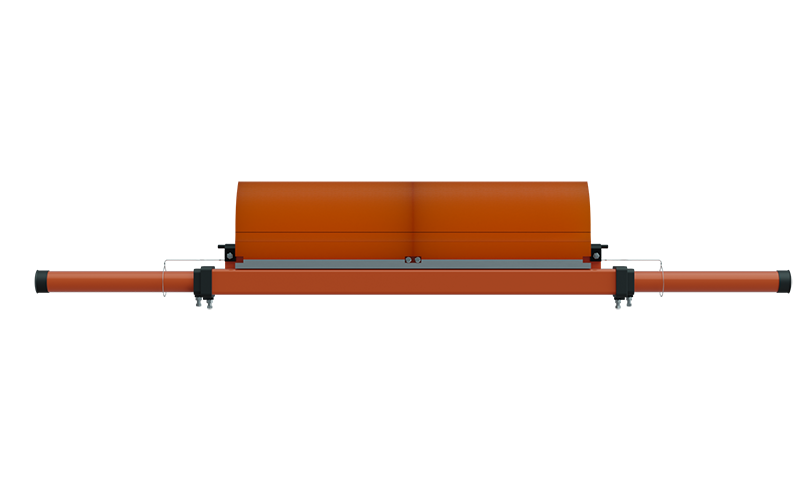

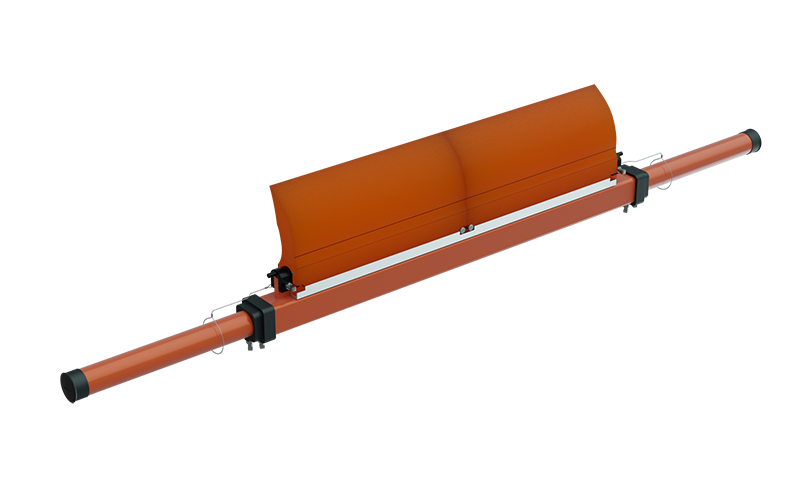

The Martin® QC1+ Cleaner XHD tackles the tough jobs. Designed for rugged conditions, this sturdy cleaner allows for quick and easy blade change, making replacement of a worn blade a simple procedure.

The Martin® QC1+ Cleaner XHD includes a Spring Tensioner to maintain proper cleaning pressure while minimizing the need for adjustment.

Dual tensioners are supplied with cleaners for belts 48 in. (1219 mm) wide or wider.

  • Fast Blade Change Cuts Service Expense
    Blade holders—2x stronger and more reliable than securing blades with pins—make blade replacement a fast and easy operation.
  • Matched Tensioner Maintains Consistent Cleaning
    Martin® QC1+ Cleaner XHD and Spring Tensioner are system-engineered to preserve the cleaning edge from high belt speeds and multiple splices.
  • Curved Blade Provides Consistent Cleaning
    Patented “CARP” (Constant Angle Radial Pressure) design maintains cleaning performance through all stages of blade life.
  • Rugged Construction Suits Tough Conditions
    Mainframe of rugged 3/8-in. (9.5-mm) thick DOM steel tubing has steel bar backbone. Aluminum extrusion in blade base holds cleaner snugly to backbone.
  • Blade Materials Match Application
    Martin Engineering’s urethane expertise provides blades to suit standard, high-temperature, or high-abrasion conditions.
  • The Most Cleaner, the Least Investment
    Economical pre-cleaner and tensioner system combines effective cleaning, durable life, and low-maintenance requirements.

Product Specifications

Belt Width 120 in. (3048 mm)
Belt Speed 1200 fpm (6 m/s)
Pulley Diameter 24-30 in. (610-762 mm)
Temperature Between -30 degrees F and 180 degrees F
Corrosive Conditions YES
Underground Applications YES
Compatible with Reversing Belts or Roll Backs YES
Accommodates Mechanical Splices YES
