CleanScrape® Primary Cleaners

CleanScrape® provides unmatched cleaning performance and is guaranteed to last up to 4x longer than any existing cleaners. CleanScrape® provides the lowest operating cost with the greatest return on investment over the life of the cleaner. Covered by our industry-best Absolutely No Excuses Money-Back Guarantee!

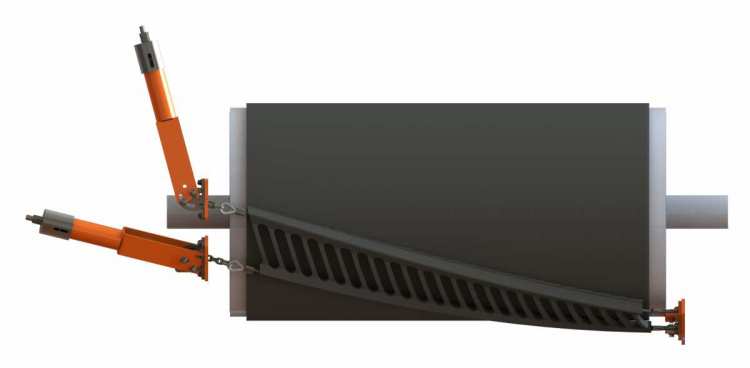

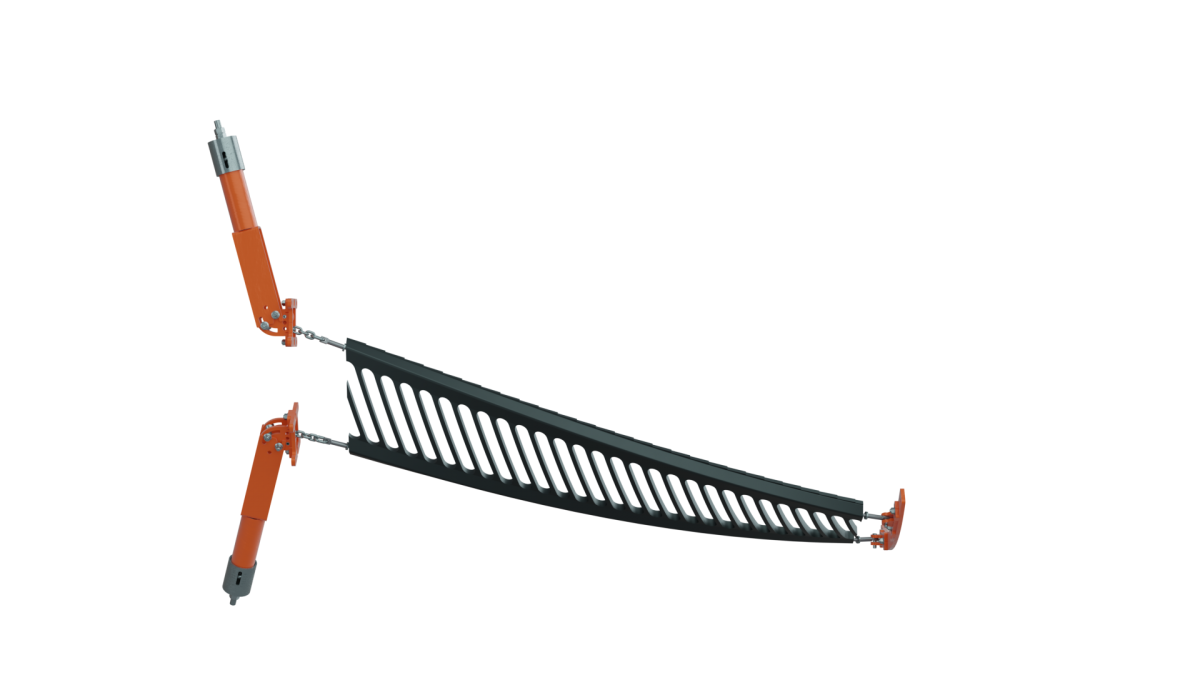

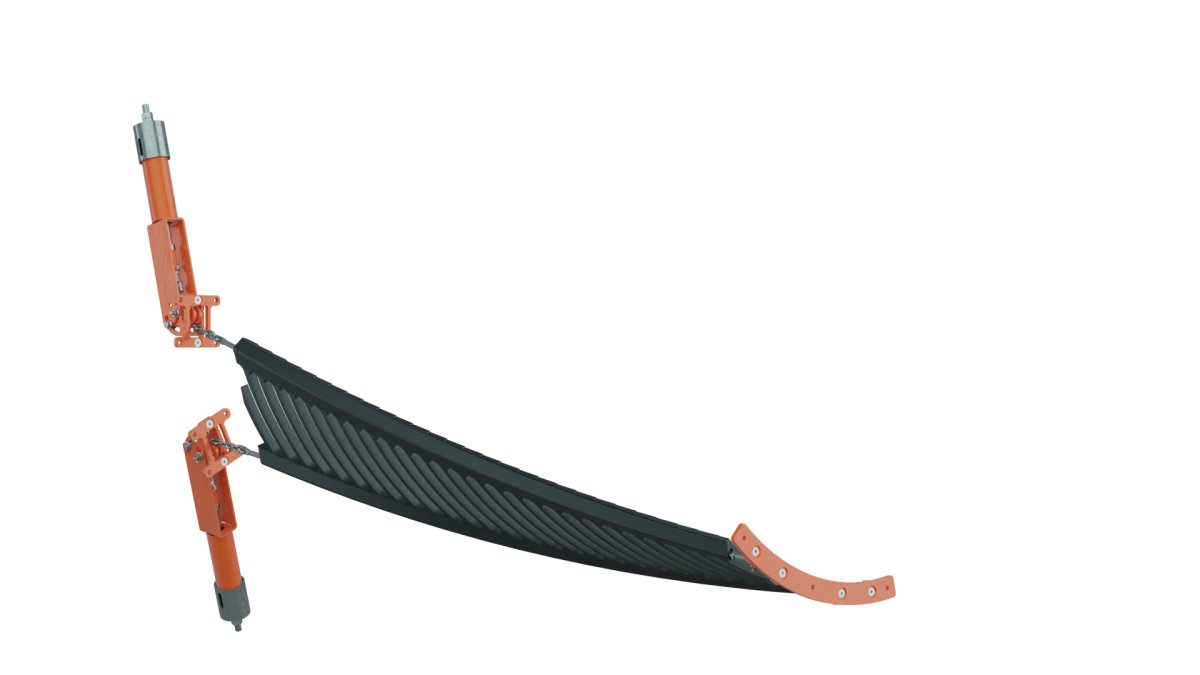

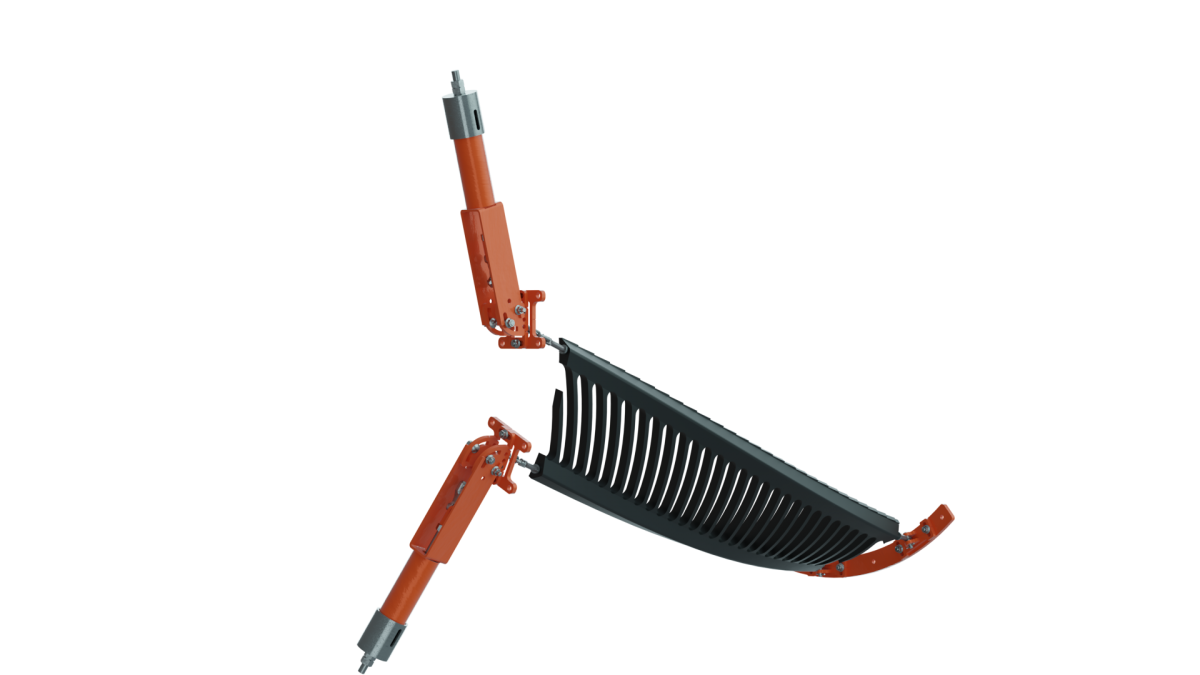

Installed at a 3-dimensional helix angle across the face of the discharge pulley, the revolutionary CleanScrape® Primary Cleaner requires minimal space for installation. Because the CleanScrape® Primary Cleaner is equipped with tungsten carbide tips and applies minimal pressure to the belt, it’s safe for use on mechanical splices, making it the most versatile belt cleaner on the market.

Click the image above for an interactive 3D product visualization.
Expand to fullscreen for an immersive experience.
Click here to explore all Martin products in 3D.
"The CleanScrape® Cleaner has been the most efficient and lowest maintenance scraper that has been used at our mine site, and that I have ever seen."

– Brock Strachan, Greenhill Operations, Canada

See what more delighted customers have to say about the CleanScrape® Cleaner

Product Specifications

Belt Width Up to 120 in (up to 3000 mm)
Belt Speed Up to 1500 fpm (up to 7.5 m/s)
Pulley Diameter From 12 inches (300 mm) up to 78 inches (2000 mm)
Temperature Between -30 degrees F and 250 degrees F
Corrosive Conditions Yes
Underground Applications Yes
Compatible with Reversing Belts or Roll Back Yes
Accommodates Mechanical Splices Yes

Resources

Brochure - Belt Cleaners Download
Brochure - CleanScrape® Primary Cleaner Download
Tech Data Sheet - CleanScrape® Primary Cleaner Download
Operator Manual - CleanScrape® Primary Cleaner (Medium, Large, & HD) Download
Operator Manual - CleanScrape® Primary Cleaner (Small) Download
Drawing - CleanScrape® Primary Cleaner Small with Outside the Chute Wall Tensioner Download
Drawing - CleanScrape® Primary Cleaner Small with Inside the Chute Wall Tensioner Download
Drawing - CleanScrape® Primary Cleaner Small with Outside the Chute Wall Tensioner at Lower End of Blade Download
Drawing - CleanScrape® Primary Cleaner Small with Outside the Chute Wall Tensioner at Lower End Download
Drawing - CleanScrape® Primary Cleaner Medium with Single 4.2 KN Tensioner At Lower End of Blade Download
Drawing - CleanScrape® Primary Cleaner Medium with Single 4.2 KN Tensioner Download
Drawing - CleanScrape® Primary Cleaner Medium with 4.2 KN Tensioners Download
Drawing - CleanScrape® Primary Cleaner Large with Single 4.2 KN Tensioner Download
Drawing - CleanScrape® Primary Cleaner Large with 6.6 KN Tensioners Download
Drawing - CleanScrape® Primary Cleaner Tensioner Diverter Download

View Additional Resources

Calculate Your CleanScrape® Cleaner ROI
Use our simple calculator to determine exactly how much you'll save after installing our CleanScrape® Cleaner on your equipment.
Get Started Now
Get A CleanScrape® Cleaner Quote
Interested in the industry’s best belt cleaning solution? We can help! Get a quote based on your exact specifications.
Get Started Now
We Solved Their Problems!
Let us help you solve yours as well. All products and services provided by Martin Engineering carry our Absolutely No Excuses Guarantee. If we don't solve your problem, we will fully refund your money or provide a different solution for you. Period.
CleanScrape® Cleaner Improves Operations At Coal-Fired Power Plant
A coal-fired power plant was experiencing massive amounts of carryback on the belt conveyor, which runs 24/7. Bottom ash and water requiring constant cleanup, and the wet, abrasive material caused premature component wear and presented a potential hazard of slips and falls. Standard belt cleaners lasted only days, and ceramic-reinforced models delivered just two weeks' service.
Read Case Study
CleanScrape® Cleaner Improves Operations At Rock Quarry
A rock quarry was experiencing carryback on one of its conveyors. Leading from the quarry to the interior of the facility, the outdoor portion of the belt was exposed to extreme weather, even though it is covered. Material adhered to the return side of the belt, collected around the mainframe and gummed up rollers, requiring downtime for maintenance and raising the cost of operation.
Read Case Study
Chute Clogging And Spillage Corrected With CleanScrape® Cleaner
A coal-fired power plant was having chute clogging and spillage issues. The existing primary and secondary cleaners allowed uneven discharge of material, which clung to chute walls and caused clogging, requiring periodic downtime for adjustment. The blade edges wore quickly, causing enough carryback and spillage to encapsulate the cleaners.
Read Case Study
New Belt Cleaner Saves 24 Hours Per Week In Cleanup Time
An aggregate facility handles 1.5 million tons of limestone per year. After experiencing excessive carryback on their existing conveyors, they wanted to make sure to address the issue when adding a new conveyor. The plant spent 16 to 24 hours per week cleaning up. There was also excessive damage to the conveyors.
Read Case Study
CleanScrape® Belt Cleaner improves plant efficiency and profitability
Martin Engineering replaces two belt cleaners with a single CleanScrape® Primary Cleaner at a steel plant and reduces material loss and improves their bottom line.
Read Case Study
