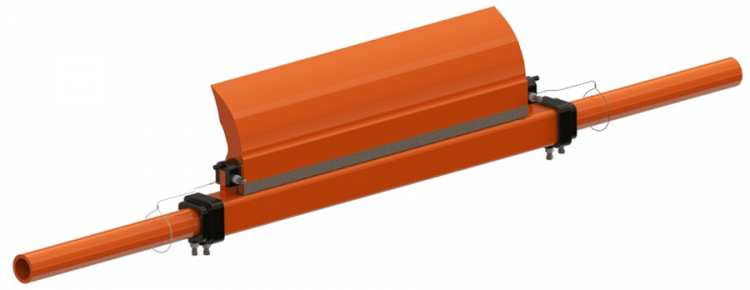

QC1+™ Cleaner HD Max

The Martin® QC1+™ Cleaner HD Max tackles the tough jobs. Designed for rugged conditions, this sturdy cleaner allows for quick and easy blade change, making replacement of a worn blade a simple procedure.

The Martin® QC1+™ Cleaner HD Max includes a Spring Tensioner to maintain proper cleaning pressure while minimizing the need for adjustment.

Dual tensioners are supplied with cleaners for belts 48 in. (1219 mm) wide or wider.

  • Fast Blade Change Cuts Service Expense
    Blade holders—2x stronger and more reliable than securing blades with pins—makes blade replacement a fast and easy operation.
  • Matched Tensioner Maintains Consistent Cleaning
    Martin® QC1+™ Cleaner HD Max and Spring Tensioner are system-engineered to preserve the cleaning edge from high belt speeds and multiple splices.
  • Curved Blade Provides Consistent Cleaning
    Patented “CARP” (Constant Angle Radial Pressure) design maintains cleaning performance through all stages of blade life.
  • Rugged Construction Suits Tough Conditions
    Mainframe of rugged 3/8-in. (9.5-mm) thick DOM steel tubing has steel bar backbone. Aluminum extrusion in blade base holds cleaner snugly to backbone.
  • Blade Materials Match Application
    Martin Engineering’s urethane expertise provides blades to suit standard, high-temperature, or high-abrasion conditions.
  • The Most Cleaner, the Least Investment
    Economical pre-cleaner and tensioner system combines effective cleaning, durable life, and low-maintenance requirements.

Martin® QC1+™ Cleaners HD Max are available for belts up to 120 in. (3048 mm) wide. For belts wider than 72 in. (2000 mm) a dual-blade assembly is required.

Normal blade length is belt width less 6 in. (150 mm). For belts with a 45° trough or where material is centered on belt, customer should consider a blade that is belt width less 12 in. (300 mm). This is because belt edges may not require cleaning, and blade-to-belt friction in these areas may lead to premature wear of cleaner and/or belt.

Product Specifications

Belt Width Up to 120 in (3048 mm)
Belt Speed Up to 1200 fpm (up to 6 m/s)
Pulley Diameter 24-30 in (610-762 mm)
Temperature Between -30 degrees F and 180 degrees F
Corrosive Conditions YES
Underground Applications YES
Compatible with Reversing Belts or Roll Backs YES
Accommodates Mechanical Splices YES
