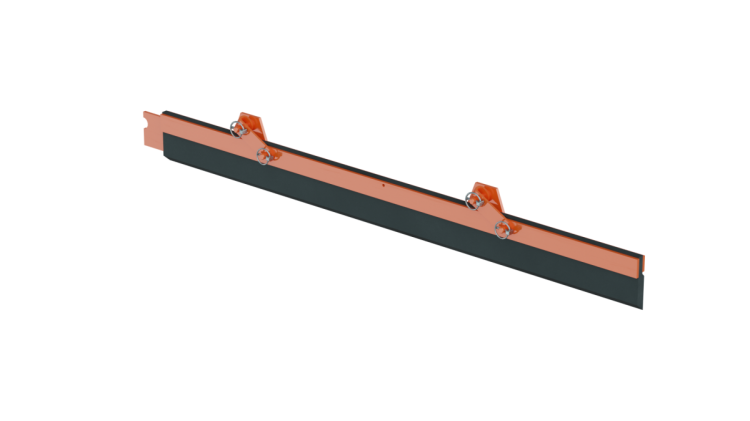

GravitySeal™ Self-Adjusting Skirting

Martin® GravitySeal™ Self-Adjusting Skirting delivers a reliable skirtboard seal that prevents spillage and reduces issues caused by fugitive material. The system automatically adjusts to maintain an effective seal, eliminating the need for skirtboard maintenance.

Designed for conveyors with minimal free belt edge and featuring a seal and clamp assembly that can be installed in spaces with low clearance to the belt, GravitySeal™ Self-Adjusting Skirting is an ideal choice for tight‑fit applications, requiring only 6 inches (152 mm) of clearance and only 1.5 inches (38 mm) free belt area.

Features and Benefits:

• Provides effective seal on conveyors with as little as 1.25 inches (32 mm) of free area on each side of belt
• Rubber sealing strip is available in continuous lengths up to 300 feet (91.4 m)
• Durable sealing strip provides wear life of 2 inches (51 mm)
• Replacement of a worn sealing strip is a quick and easy operation; just remove the linchpins and replace the pre-punched strip
• Not suitable for reversing belts or belt with roll-back

Our technicians and engineers are available to provide expert advice and assistance on this product and all of your bulk material handling questions and problems. Please contact us today and let us help!
